Haro MTB

Thread Two

Thread Two

Regular price $1,499.99
Regular price $1,749.99 Sale price $1,499.99
Sale Out of stock

SKU: SKU:11541

As the second hardtail model in the line, the Thread Two offers the same radical looking aluminum frame with upgraded components for serious shredders, from its Manitou Circus Expert fork to the gravity-proven FSA Gradient cockpit, sealed bearing Haro SD Nylon pedals, Pivotal MTB saddle and alloy seat-post, Spank Spoon rims and the New Haro oversize sealed rotor for fast bar-spin action. The Thread Two offers a unique combination with its custom alloy detangler and hydraulic-assisted rear brake with the innovative TRP HY/RD disc caliper for high-performance braking while bar-spinning away...Get ready to nail that line like you never have before.
Color

View full details

FEATURES

  • Haro Thread X6 series frame w/ tapered head tube
  • 23.3" TT length w/ 410mm/16.2" reach
  • Custom Haro OS rotor

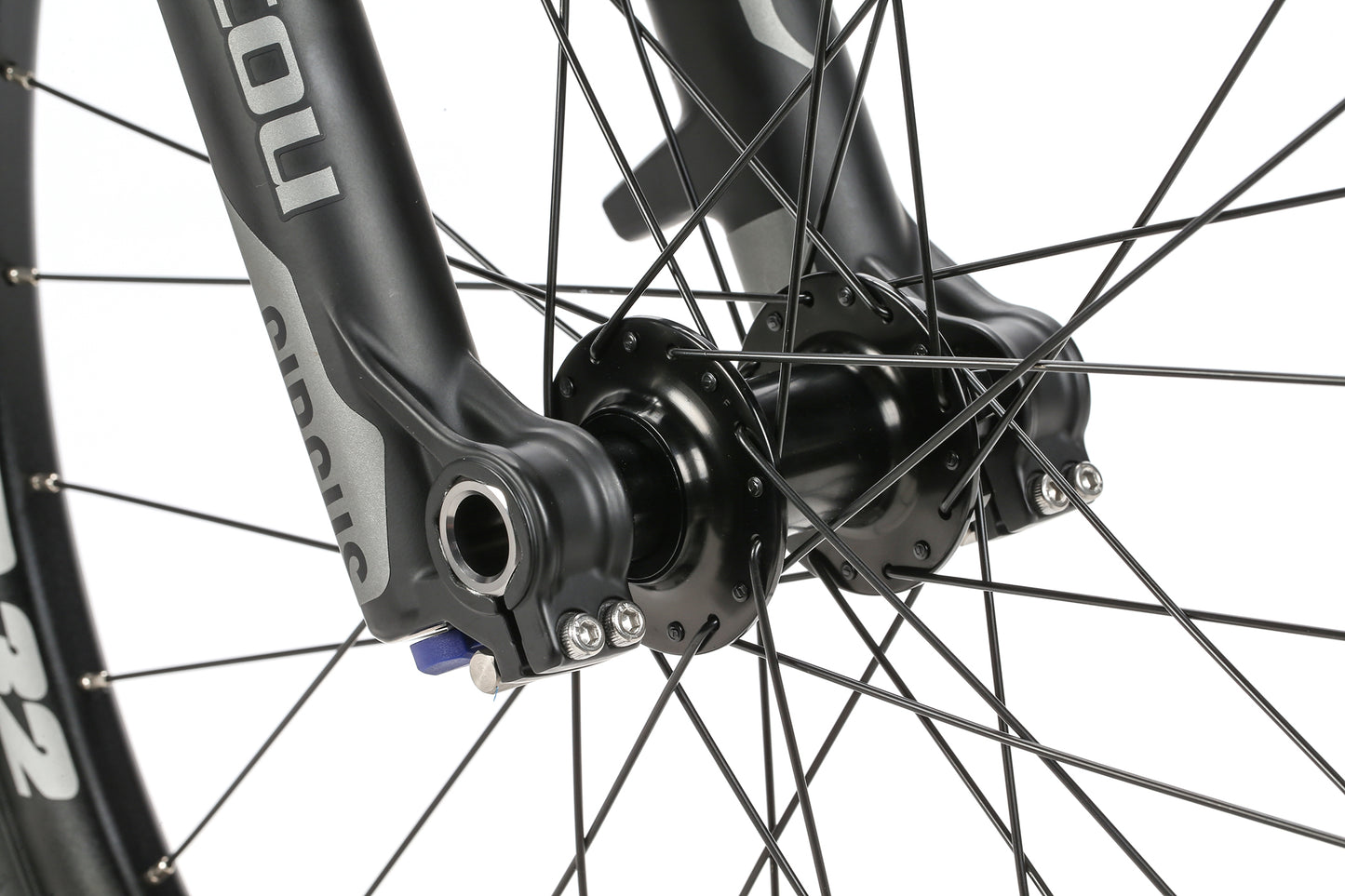

  • Manitou Circus Expert 100mm fork w/ 20mm thru-axle
  • Haro Aluminum 2-pc crankset, 30T Narrow-Wide chainring
  • FSA Gradient 25mm rise handlebar & 1-1/8" stem
  • Haro Pivotal saddle and post
  • Spank Ind. Spoon aluminum DW 32h rims
  • Pivit aluminum disc cassette hubs w/14t Crmo cog
  • Kenda Small Block Eight 2.35"/2.10" tires
  • TRP HY/RD-C mechanical/hydraulic rear disc brake

SPECIFICATIONS

Specifications
FRAMESET
FrameHaro Full X6 Aluminum Thread frame | Internal head tube | 68mm Threaded BSA | ISCG Mount
ForkManitou Circus Expert | 100mm travel | Tapered steer tube | 110x20mm thru-axle
ColorsMatte Black / Alloy
DRIVETRAIN
CranksHaro Aluminum 2-pc | cold forged | 30T Narrow-Wide chainring
PedalsHaro SD Nylon | Sealed bearings
ChainKMC Z1 | 1/2" x 3/32"
Bottom Bracket24mm | 4 x Sealed bearing
Front Derailleur
Rear Derailleur
Derailleur Shifter
Freewheel/Cassette14T Chromoly cog
WHEELS
TiresKenda Small Block 8 26x2.35" Front | 26"x2.10" Rear | 60 TPI
Wheels/RimsSpank Ind. Spoon Aluminum doublewall | 32h
HubsPivit sealed bearing Aluminum disc | singlespeed cassette | 20mm front thru axle | 32h
BRAKING SYSTEM
BrakesTRP HY/RD-C 160 | Cable / Hydraulic Disc Brake for IS Rear Mount | 160mm disc
Brake LeversOdyssey Trigger for Single Gyro upper cable
OTHER COMPONENTS
Grips/TapeVelo Lock On
HandlebarFSA Gradient Riser | 25mm Rise | 9 Deg. Backsweep | 6 deg. Upsweep | 31.8mm Clamp
StemFSA Gradient 1-1/8" | 45mm Ext.
HeadsetFSA # 51 | 1-1/8"-1.5" Aluminum | top | lower AC Bearings
SaddleHaro Pivotal w/ hollow bolt
Seat PostPivit aluminum 31.6mm | Pivotal
Seat ClampPivit aluminum 35mm
ExtrasHaro OS Teflon Bearing Rotor | Upper & Lower rotor cables

GEOMETRY

Geometry frame chart
Geometry & Sizing
SIZEThread Two
A. Seat Tube (C-T)320mm (12.6")
B. Top Tube (Effective)593mm (23.3")
C. Head Tube Angle68.5°
D. Seat Tube Angle69°
E. Chainstay Length390mm (15.4")
F. BB Drop15mm (0.6")
G. Wheelbase1052mm (41.4")
H. Head Tube Length115mm (4.5")
I. Standover692mm (27.2")
J. Stack Height554mm (21.8")
K. Reach410mm (16.1")
L. Fork Height478mm (18.8")
M. Fork Offset41mm (1.6")
N. Stem Length45mm
O. Bar Width760mm
P. Crank Length170mm
